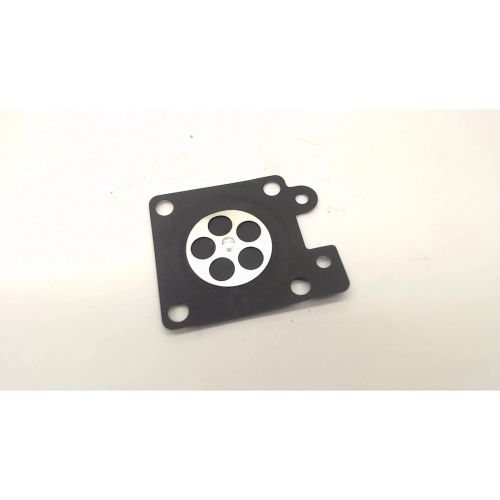

Makita 168620-7 — Metering Diaphragm Assembly (original Makita)
Keep your 2‑stroke Makita brushcutter or power‑head running smoothly with the genuine Makita 168620-7 metering diaphragm assembly. This precision molded membrane sits in the carburetor’s metering/pump chamber and regulates fuel flow and pump pressure; a cracked, hardened or slack diaphragm will cause hard starting, flooding, poor throttle response and loss of power.
What you’re getting
- The metering diaphragm assembly (part no. 168620-7 / 1686207), supplied as the replacement diaphragm/pump membrane used in Makita carburetors.
- Typical construction: flexible rubber/elastic membrane and gasket interface designed to restore the carburetor pump action and correct fuel metering.
Fits (example models)
- Common compatible models include DBC260L, DBC260U, EM2600L, EM2650LH, EB7650TH, EB7660TH, EH5000W and BHX2500 / BHX2501 among others — check your model’s parts list to confirm fit.
When to replace
- Replace the diaphragm if it’s visibly cracked, hardened, stretched or if the machine shows fuel‑delivery symptoms (hard starts, flooding, poor idle/throttle). The service manual shows the diaphragm separated by four screws from the carburetor and describes removal/replacement steps.
Notes
- Supersedes/referenced alternate numbers used in parts listings: 1686207 (no space). Verify the part number against your tool’s exploded parts list before ordering.
This part is the genuine Makita metering diaphragm designed to restore proper fuel metering and pump action in compatible Makita brushcutter and power‑head carburetors.
