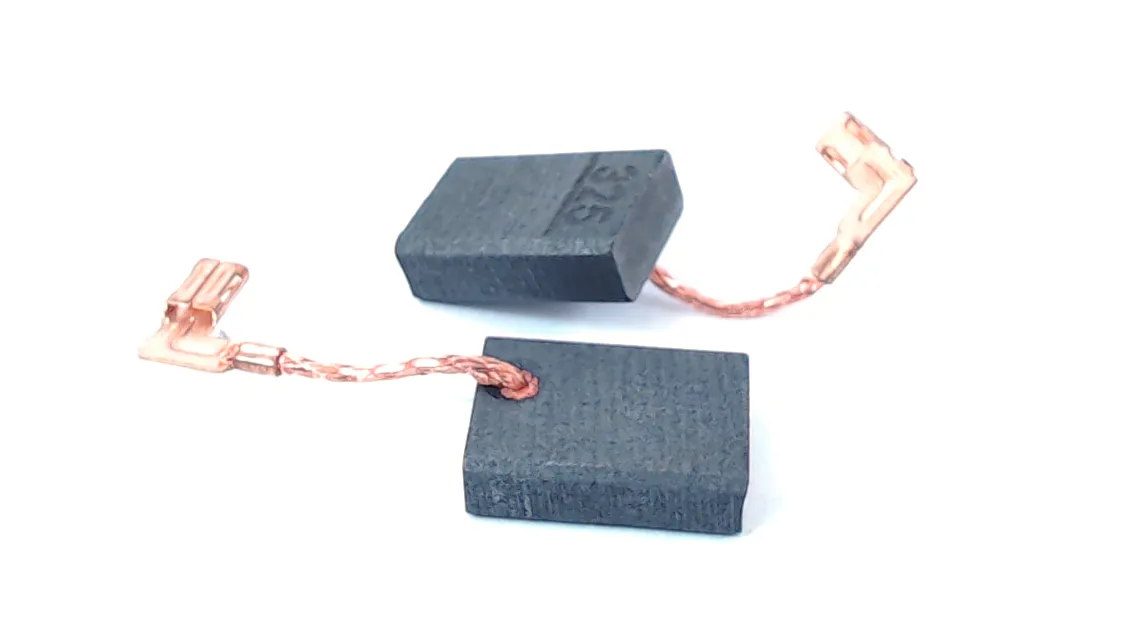

Original Makita Carbon Brush Set (Pair) CB‑325 (part no. 194074‑2) — direct replacement brush pair engineered for Makita corded tools. The set includes two matched carbon/graphite brushes with braided copper leads and fitted springs for reliable electrical contact and consistent wear behavior.
Each brush block measures approximately 15.8 × 11 × 4.9 mm (length × width × thickness), sized to fit the brush holders used in several Makita grinders and rotary/hammer models. The brushes are supplied as a two‑piece set so you replace both motor contacts at the same time.
Example Makita models that use the CB‑325 (194074‑2) brush set include many of the 100–125 mm angle grinders (9553, 9554, 9555, 9557, 9558, 9565 series), several GA/GD disc tool models, and a wide range of rotary/combination hammers such as HR2230, HR2460, HR2470 (and HR2470F), HR2600/2610, HR2630 and HR2810 series. Use these model examples to confirm fit before installation.
Why this part: if your corded Makita is sputtering, losing power under load, or producing excessive sparking at the commutator, worn brushes are a common, inexpensive repair that restores normal motor performance. This is the original Makita CB‑325 brush set (194074‑2) made to the same specification as the factory parts.
