629B89-7 supersedes older part numbers: 629B13-0

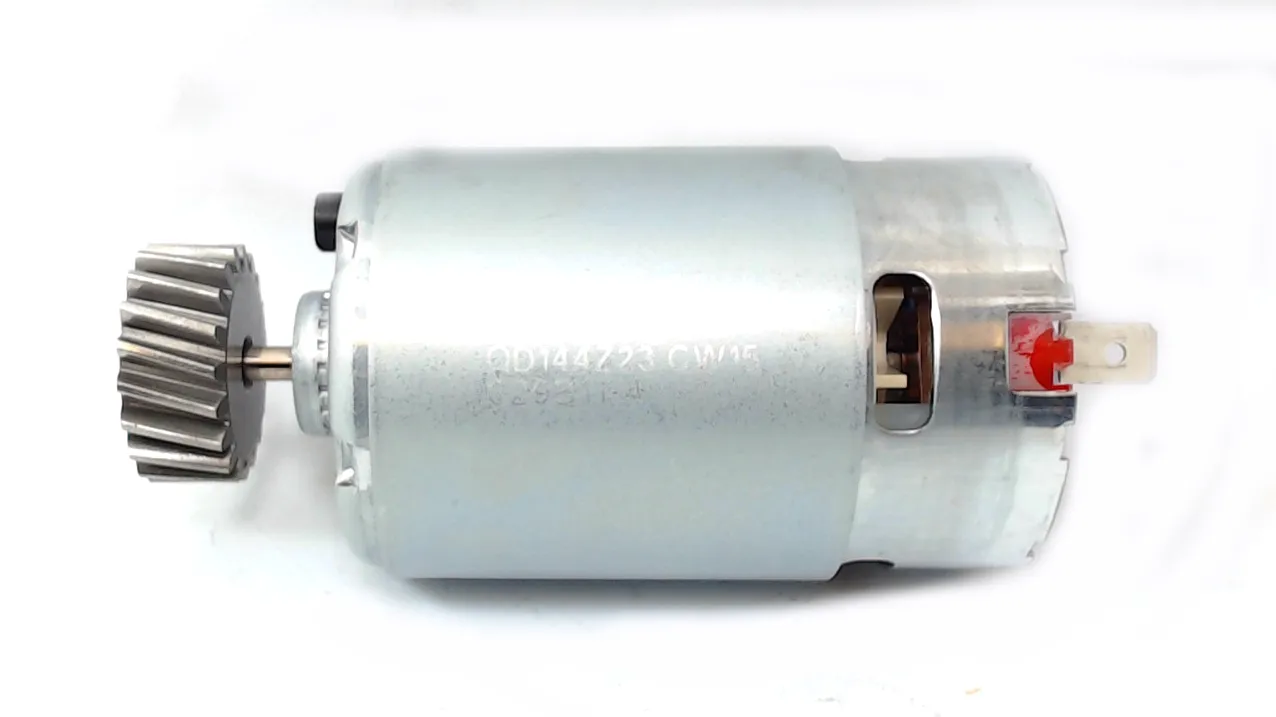

Original Makita DC motor 629B89-7 — direct replacement for the Makita DUR193 cordless trimmer (includes DUR193M001, DUR193RF, DUR193Z variants). This genuine Makita motor is the trimmer’s drive unit (listed as DC MOTOR 629B89-7) and restores full cutting power and smooth operation.
Key specifications you can check before fitting: motor casing Ø 36 mm (Ø 38 mm with protective shroud), output shaft length 80 mm, shaft Ø 3 mm, mounting hole center 25 mm with M3 threads; gear Ø 21 mm, gear height 9 mm with 19 teeth (right‑hand).
Simple to swap using the tool’s plug‑in contacts — a direct way to get your trimmer back to work. When repairing, note the motor is shown on the DUR193 parts breakdown and the motor housing (Makita part 183V20-2) is commonly inspected or replaced at the same time to ensure correct alignment and long service life.
This is listed among Makita spare parts for the DUR193 and is a focused replacement if you’re maintaining or repairing garden equipment; it’s one of the common parts for power tools that fails after heavy use and will get your trimmer turning as designed.
