Makita LS1013 Parts
3 Compatible Accessories Available!
Enhance your Makita LS1013 with our range of accessories
| Ref | Part Number | Description | Price | |
|---|---|---|---|---|
| 1 | 911373-5 | *PAN HD SCREW M6x50 LS1013 | £1.00 |
|
| 2 | 154568-9 | MOTOR HOUSING COMP LS1013 | £18.85 |
|
| 2 | 159963-8 | *MOTOR HOUSING COMP LS1013 | £18.85 |
|
| 3 | 265995-6 | TAPPING SCREW 4X18 | £1.00 |
|
| 4 | 416075-3 | REAR COVER LS1013/ |
£4.55 |
|
| 5 | 631218-8 | CONTROLLER 110V LS1013 | £55.15 |
|
| 5 | 631219-6 | CONTROLLER 240V LS1013 | £58.55 |
|
| 6 | 265995-6 | TAPPING SCREW 4X18 | £1.00 |
|

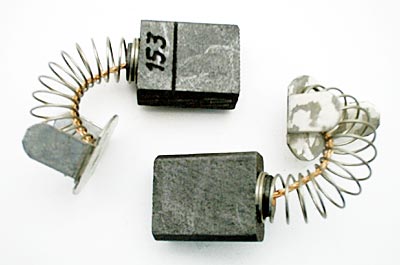

| 7 | 181044-0 | CARBON BRUSH CB-153 (CB-22)/ |
£3.85 |
|
| 8 | 643650-4 | BRUSH HOLDER CAP CB-5/ |
£1.00 |
|
| 9 | 858580-8 | NAME PLATE LS1013 | £4.55 |
|
| 10 | 599505-0 | FIELD ASSY 110V LS1013 | £46.15 |
|
| 10 | 599507-6 | FIELD ASSY 240V LS1013 | £47.15 |
|
| 11 | 266029-8 | TAPPING SCREW 5X65 5703R | £1.00 |
|
| 12 | 911223-4 | PAN HD SCREW 5X16 W/ |
£1.00 |
|
| 13 | 233165-5 | COMPRESSION SPRING 28 LS1013 | £5.25 |
|
| 14 | 344464-1 | SPRING HOLDER LS1013/ |
£1.00 |
|
| 15 | 257163-5 | RING 6 LS1013/ |
£2.15 |
|
| 16 | 253804-1 | BLUE WASHER 6 CS DST112/ |
£1.00 |
|
| 17 | 922331-6 | CAP HD SCREW M6X20 HM1800/ |
£1.00 |
|
| 18 | 344415-4 | LINK PLATE LS1013 | £3.85 |
|
| 19 | 257163-5 | RING 6 LS1013/ |
£2.15 |
|
| 20 | 253804-1 | BLUE WASHER 6 CS DST112/ |
£1.00 |
|
| 21 | 961018-5 | EXT E-RING JIS JE-5 DLS714 | £1.00 |
|
| 22 | 231240-1 | COMPRESSION SPRING 7 RP0900/ |
£1.00 |
|
| 23 | 256633-1 | SHAFT LOCK PIN 6 LS1019/ |
£1.00 |
|
| 24 | 231928-3 | RING SPRING 4110C/ |
£1.00 |
|
| 25 | 961057-5 | EXT DIN 471 CIRCLIP-17/ |
£1.00 |
|
| 26 | 211275-8 | BALL BEARING 6003DDW LS1019 | £8.85 |
|
| 27 | 285686-3 | BEARING RETAINER 94 LS1013 | £3.55 |
|
| 28 | 240001-8 | FAN 80 LS1019/ |
£3.35 |
|
| 29 | 516721-9 | ARMATURE ASSY 110V LS1013 | £91.40 |
|
| 29 | 516724-3 | ARMATURE ASSY 240V LS1013 | £92.50 |
|
| 30 | 681642-5 | INSULATION WASHER HM1317C-CB/ |
£7.65 |
|
| 31 | 211061-7 | BALL BEARING 6000LLB BTW200 | £6.35 |
|
| 32 | 416107-6 | BAFFLE PLATE LS1013 | £1.00 |
|
| 33 | 665716-0 | POWER SUPPLY CORD 1.5-2-2.5 | £7.60 |
|
| 33 | 692527-0 | LEAD WIRE HS7100/ |
£21.15 |
|
| 33 | 695217-4 | POWER SUPPLY CORD HS6100/ |
£8.75 |
|
| 34 | 682506-6 | CORD GUARD 12-90 110V 9029 | £1.75 |
|
| 34 | 682540-6 | CORD GUARD HS6100/ |
£1.00 |
|
| 34 | 682505-8 | CORD GUARD 10-90 HS6100/ |
£1.00 |
|
| 35 | 687052-4 | STRAIN RELIEF HS7100/ |
£1.00 |
|
| 35 | 687053-2 | STRAIN RELIEF 110V UK360/ |
£1.00 |
|
| 35 | 687063-9 | STRAIN RELIEF UH4570/ |
£1.00 |
|
| 36 | 265995-6 | TAPPING SCREW 4X18 | £1.00 |
|
| 37 | 414546-4 | CAM LS1013/ |
£1.00 |
|
| 38 | 416000-4 | LOCK OFF LEVER LS1013 | £1.85 |
|
| 39 | 411478-6 | SAFETY SWITCH BUTTON 2708 | £1.00 |
|
| 40 | 182911-2 | *HANDLE SET LS1013 | £11.45 |
|
| 41 | 231457-6 | COMPRESSION SPRING 3 HM1303B/ |
£1.00 |
|
| 42 | 651923-1 | SWITCH TG70B UC3530A/ |
£13.75 |
|
| 43 | 415999-0 | SWITCH LEVER LS1013 | £2.45 |
|
| 44 | 265995-6 | TAPPING SCREW 4X18 | £1.00 |
|
| 45 | 182911-2 | *HANDLE SET LS1013 | £11.45 |
|
| 45 | 183840-2 | HANDLE SET LS1214/ |
£11.35 |
|
| 46 | 921467-8 | HEX HD SCREW M8X45 | £1.00 |
|
| 47 | 262003-4 | RUBBER RING 6 HM1400/ |
£1.00 |
|
| 48 | 911323-0 | *PAN HD SCREW M6x16 | £1.00 |
|
| 49 | 421562-9 | GRIP LS1013 | £2.55 |
|
| 50 | 344420-1 | 'GRIP HOLDER LS1013 | £3.15 |
|
| 51 | 911323-0 | *PAN HD SCREW M6x16 | £1.00 |
|
| 52 | 151470-7 | *BLADE CASE COMPLETE LS1013 | £98.30 |
|
| 52 | 154566-3 | BLADE CASE COMPLETE | £48.35 |
|
| 52 | 154827-1 | *BLADE CASE COMPLETE LS1013 | £50.65 |
|
| 52 | 188386-3 | BLADE CASE COMPLETE LS1013 | £76.65 |
|
| 53 | 819064-1 | LABEL/ |
£1.95 |
|
| 53 | 819214-8 | MAKITA LOGO LABEL LS1013L/ |
£1.95 |
|
| 54 | 344045-1 | STOPPER ARM PLATE LS1013 | £1.00 |
|
| 55 | 911113-1 | PAN HEAD SCREW M4X10 | £1.00 |
|
| 56 | 213460-9 | O RING 35 HM1303B/ |
£2.15 |
|
| 57 | 416133-5 | DUST NOZZLE | £1.00 |
|
| 57 | 419277-0 | DUST NOZZLE | £2.25 |
|
| 58 | 265717-4 | SCREW M6X43 | £2.35 |
|
| 59 | 262001-8 | URETHANE RING 5 TW0250/ |
£1.95 |
|
| 60 | 316471-4 | *STOPPER ARM LS1013 | £7.45 |
|
| 60 | 317176-9 | STOPPER ARM LS1013 | £7.45 |
|
| 61 | 211021-9 | BALL BEARING HP1631/ |
£6.15 |
|
| 62 | 961054-1 | EXT DIN 471 CIRCLIP-14 | £1.00 |
|
| 63 | 226742-0 | SPIRAL BEVEL GEAR 33 LS1013 | £23.45 |
|
| 64 | 262074-1 | RUBBER RING 20 LS1013 | £1.00 |
|
| 65 | 267035-6 | *HARD WASHER 14 6805BV | £1.85 |
|
| 66 | 316836-0 | BEARING BOX LS1013 | £7.25 |
|
| 67 | 254202-2 | KEY 4-10 9401/ |
£1.00 |
|
| 68 | 322899-6 | SPINDLE LS1013 | £15.95 |
|
| 69 | 211275-8 | BALL BEARING 6003DDW LS1019 | £8.85 |
|
| 70 | 285828-9 | BEARING RETAINER 66 LS1013 | £1.95 |
|
| 71 | 257022-3 | RING 16-25 LS1040F/ |
£3.35 |
|
| 72 | 224333-1 | FLANGE 53 LS1013/ |
£3.55 |
|
| 73 | 257262-3 | RING 16 | £1.00 |
|
| 73 | 257137-6 | *RING 16 LS1013/ |
£3.45 |
|
| 74 | 224333-1 | FLANGE 53 LS1013/ |
£3.55 |
|
| 75 | 265355-2 | HEX HD SCREW M8X20 L THR WITH | £1.95 |
|
| 76 | 343639-9 | CENTER PLATE LS1030/ |
£4.65 |
|
| 77 | 344380-7 | *CENTRE COVER LS1040&LH1040 | £2.55 |
|
| 77 | 345226-0 | CENTRE COVER LS1013 | £3.15 |
|
| 78 | 265324-3 | HEX HD SCREW M8X12 WITH COLLA | £1.75 |
|
| 79 | 231593-8 | TORSION SPRING 36 LS1030/ |
£1.00 |
|
| 80 | 416105-0 | *SAFETY COVER LS1013 | £10.35 |
|
| 80 | 450047-8 | SAFETY COVER LS1013 | £10.35 |
|
| 81 | 267136-0 | LARGE WASHER 5 LS800D/ |
£1.00 |
|
| 82 | 911213-7 | PAN HEAD SCREW M5X12 ER2550 | £1.00 |
|
| 83 | 265008-3 | PIVOT SCREW M5 LS800/ |
£2.15 |
|
| 84 | 911223-4 | PAN HD SCREW 5X16 W/ |
£1.00 |
|
| 85 | 265406-1 | HEX HD SCREW M10X130 2414B/ |
£5.05 |
|
| 86 | 253024-7 | FLAT WASHER 10 LS1013/ |
£1.00 |
|
| 87 | 331428-4 | PIPE 16-113 2414B/ |
£6.55 |
|
| 88 | 252105-4 | NYLON INSERT NUT M8-13 | £1.00 |
|
| 89 | 941201-0 | FLAT WASHER 8 DIN125-B HS7611 | £1.00 |
|
| 90 | 316839-4 | *ARM LS1013 | £78.40 |
|
| 90 | 317983-0 | ARM LS1013 | £32.50 |
|
| 91 | 324183-5 | STOPPER PIN | £3.15 |
|
| 91 | 322317-4 | STOPPER PIN LS1040F/ |
£3.15 |
|
| 92 | 213021-5 | O RING 5 BTM40/ |
£1.00 |
|
| 93 | 687049-3 | STRAIN RELIEF LF1000 | £1.00 |
|
| 93 | 687042-7 | STRAIN RELIEF LS1013/ |
£1.00 |
|
| 94 | 266026-4 | CT SCREW M4X12 UC3530A/ |
£1.00 |
|
| 95 | 252130-5 | HEX. LOCK NUT M10-17 | £1.85 |
|
| 96 | 253024-7 | FLAT WASHER 10 LS1013/ |
£1.00 |
|
| 97 | 265455-8 | *HEX HD SCREW M8X30 | £1.85 |
|
| 98 | 265412-6 | *HEX HD SCREW M8X20 | £1.00 |
|
| 99 | 216003-6 | STEEL BALL 10 LS1013 | £1.00 |
|
| 100 | 344414-6 | *GUIDE PLATE LS1013 | £6.25 |
|
| 100 | 345418-1 | GUIDE PLATE LS1214 | £6.25 |
|
| 101 | 231626-9 | TORSION SPRING 28 LS1013/ |
£3.15 |
|
| 102 | 413067-3 | INDICATION PLATE LS1013 | £1.00 |
|
| 103 | 911114-9 | PAN HD SCREW M4X10/ |
£1.00 |
|
| 104 | 233168-9 | COMPRESSION SPRING 5 LS1013 | £1.00 |
|
| 105 | 266131-7 | HEX SOCKET HD BOLT M12xX12 LS1 | £1.00 |
|
| 106 | 253852-0 | LARGE WASHER 8 LS1013/ |
£1.00 |
|
| 107 | 265442-7 | HEX HD SCREW M8X40/ |
£1.00 |
|
| 108 | 415209-5 | KERF BOARD | £3.07 |
|
| 109 | 266026-4 | CT SCREW M4X12 UC3530A/ |
£1.00 |
|
| 110 | 252014-7 | NYLON INSERT NUT M6-10 LS1013 | £1.00 |
|
| 111 | 344463-3 | SUB FENCE PLATE LS1013 | £1.00 |
|
| 112 | 150711-8 | *SUB FENCE COMPLETE LS1013 | £16.05 |
|
| 112 | 154564-7 | SUB FENCE COMPLETE LS1013 | £16.05 |
|
| 113 | 253715-0 | HARD WASHER 6 EA3500/ |
£1.00 |
|
| 114 | 912357-6 | COUNTERSUNK SCREW M6X35 | £1.00 |
|
| 115 | 251887-5 | SCREW M6X10 LS800D/ |
£2.25 |
|
| 116 | 265488-3 | HEX BOLT M8X30 LS1040F | £1.00 |
|
| 116 | 921451-3 | HEX HD SCREW M8X30 LS1030 | £1.00 |
|
| 117 | 316840-9 | GUIDE RULE | £64.89 |
|
| 118 | 266132-5 | SCREW M8x320 LS1013 | £3.15 |
|
| 119 | 931402-8 | HEX FULLNUT M8 LS1013/ |
£1.00 |
|
| 120 | 271314-6 | GRIP 40 LS1214 | £6.75 |
|
| 120 | 273444-9 | GRIP 37 LS1013 | £7.35 |
|
| 121 | 331491-7 | PIPE 9-200 LS1013 | £2.45 |
|
| 122 | 152541-3 | KNOB 48 COMPLETE LS1013 | £6.25 |
|
| 123 | 421563-7 | CAP 10 LS1013 | £1.00 |
|
| 124 | 322924-3 | COIL SPRING LS1013 | £1.00 |
|
| 125 | 322909-9 | LOCK PIN LS1013 | £8.35 |
|
| 126 | 266034-5 | CT SCREW M4X16 HS6100/ |
£1.00 |
|
| 127 | 232075-3 | LEAF SPRING LF1000 | £1.85 |
|
| 128 | 961018-5 | EXT E-RING JIS JE-5 DLS714 | £1.00 |
|
| 129 | 231307-5 | COMPRESSION SPRING 6 | £1.00 |
|
| 130 | 316899-6 | PIN HOLDER LS1013 | £8.65 |
|
| 131 | 344411-2 | SLIDE STOPPER LS1013 | £2.15 |
|
| 132 | 251267-5 | PAN HD SHOULDER SCREW M6 2400 | £1.00 |
|
| 133 | 256196-7 | PIN 5 LS1013 EB5300TH/ |
£1.00 |
|
| 134 | 266034-5 | CT SCREW M4X16 HS6100/ |
£1.00 |
|
| 135 | 344412-0 | STOPPER HOLDER LS1013 | £8.45 |
|
| 136 | 331493-3 | TURN STOPPER LS1013 | £72.15 |
|
| 137 | 266034-5 | CT SCREW M4X16 HS6100/ |
£1.00 |
|
| 138 | 266026-4 | CT SCREW M4X12 UC3530A/ |
£1.00 |
|
| 139 | 816128-2 | POINTER | £1.00 |
|
| 140 | 151468-4 | *TURN BASE COMPLETE LS1013 | £187.85 |
|
| 140 | 153832-5 | TURN BASE COMPLETE LS1013/ |
£187.85 |
|
| 141 | 921356-7 | *HEX HDSCREW M6X35 W/ |
£1.00 |
|
| 142 | 152542-1 | SQUARE ROD COMPLETE LS1013/ |
£5.65 |
|
| 143 | 151459-5 | ARM HOLDER COMPLETE LS1013/ |
£128.85 |
|
| 144 | 251668-7 | HEX HD SETSCREW M10X90 LS1013 | £1.85 |
|
| 145 | 911113-1 | PAN HEAD SCREW M4X10 | £1.00 |
|
| 146 | 416006-2 | LEVER 100 | £4.45 |
|
| 147 | 252144-4 | HEX. NUT M10-17 | £3.75 |
|
| 148 | 253024-7 | FLAT WASHER 10 LS1013/ |
£1.00 |
|
| 149 | 152540-5 | BEARING BOX LS1013/ |
£63.05 |
|
| 150 | 922451-6 | *HEX SOCKET HD BOLT M8X30 | £1.00 |
|
| 151 | 266026-4 | CT SCREW M4X12 UC3530A/ |
£1.00 |
|
| 152 | 816326-8 | MITER SCALE LABEL LS1013 | £5.35 |
|
| 153 | 344477-2 | SLIDE PLATE LS1013 | £2.35 |
|
| 154 | 251887-5 | SCREW M6X10 LS800D/ |
£2.25 |
|
| 155 | 286212-1 | CAP 20 LS1030/ |
£1.00 |
|
| 156 | 150714-2 | *BASE COMPLETE LS1013 | £132.25 |
|
| 156 | 151898-9 | BASE COMPLETE | £132.25 |
|
| 156 | 153837-5 | *BASE COMPLETE LS1013 | £55.15 |
|
| 156 | 153889-6 | BASE COMPLETE LS1214/ |
£40.95 |
|
| 157 | 911108-4 | PAN HEAD SCREW M4X8 BDF453 | £1.00 |
|
| 158 | 645006-7 | NOISE SUPPRESSOR/ |
£2.25 |
|
| 159 | 645190-8 | NOISE SUPPRESSOR 110V UH4570 | £1.00 |
|
| 159 | 645185-1 | NOISE SUPPRESSOR/ |
£1.00 |
|
| 159 | 645105-5 | NOISE SUPPRESSOR/ |
£2.25 |
|
| 159 | 645200-1 | NOISE SUPPRESSOR | £3.05 |
|
| 160 | 688106-0 | *LINE FILTER 2414B/ |
£4.75 |
|
| 160 | 688131-1 | LINE FILTER VC3211M/ |
£1.00 |
|
| 161 | 651941-9 | SWITCH V-15-2A5 LS1019/ |
£3.85 |
|
| 162 | 253804-1 | BLUE WASHER 6 CS DST112/ |
£1.00 |
|
| 163 | 941201-0 | FLAT WASHER 8 DIN125-B HS7611 | £1.00 |
|
| 164 | 231266-3 | COMPRESSION SPRING 5 | £1.00 |
|
| 165 | 271601-3 | KNOB 20 LS1030/ |
£1.00 |
|
| 166 | 251961-9 | SOCKET FLAT GRUB SCREW M6X10 | £1.00 |
|
| 900 | 344468-3 | *LOCK PLATE LS1013 | £2.85 |
|
| 900 | 344855-6 | LOCK PLATE | £3.65 |
|
| 900 | 345616-7 | LOCK PLATE LS1013 | £1.00 |
|
| 901 | 322985-3 | *LOCK PIN 8 LS1013 | £1.85 |
|
| 901 | 324654-2 | LOCK PIN 8 LS1013 | £2.15 |
|
| 903 | 322984-5 | *ROD 8 LS1013 | £7.05 |
|
| 903 | 324640-3 | ROD 8 LS1013 | £6.35 |
|
| 904 | 344469-1 | *LEVER LS1013 | £3.85 |
|
| 904 | 345606-0 | *LEVER LS1013 | £1.85 |
|
| 904 | 345829-0 | LEVER LS1013 | £3.15 |
|
| 905 | 421589-9 | CAP | £1.00 |
|
| 906 | 922107-1 | CAP HD SCREW M4X8 4320/ |
£1.00 |
|
| 906 | 911113-1 | PAN HEAD SCREW M4X10 | £1.00 |
|
| 907 | 911113-1 | PAN HEAD SCREW M4X10 | £1.00 |
|
| 1001 | 762001-3 | Triangular Rule | £1.80 |
|
| 1002 | 782212-4 | SOCKET WRENCH 13 24B/ |
£6.30 |
|
| 1003 | 122523-9 | DUST BAG ASS'Y | £7.10 |
|
| 1004 | 411478-6 | SAFETY SWITCH BUTTON 2708 | £1.00 |
|
| 1005 | 322932-4 | HOLDER 255 | £4.40 |
|
| 1006 | 251887-5 | SCREW M6X10 LS800D/ |
£2.25 |
|
| 1007 | 322983-7 | VISE ROD LS1214/ |
£4.65 |
|
| 1008 | 271309-9 | KNOB 40 LS1013L | £3.95 |
|
| 1009 | 122538-6 | VISE ASS'Y | £26.22 |
|
| 1010 | 253804-1 | BLUE WASHER 6 CS DST112/ |
£1.00 |
|
| 1011 | 343651-9 | VISE PLATE LS1030/ |
£1.00 |
|
| 1012 | 251370-2 | PAN HD SHOULDER SCREW M5 LS80 | £1.00 |
|
| 1013 | 151917-1 | KERF BLOCK COMPLETE | £4.62 |
|
| 1014 | 251314-2 | SPECIAL PAN HD SCREW M4X12 | £1.00 |
|
| 5001 | 646049-2 | CHOKE COIL HR2420/ |
£1.00 |
|
| 5002 | 646080-8 | CHOKE COIL | £0.00 |
|
| 5005 | 163388-0 | SPIRAL SPRING LS1013* | £24.55 |
Not Available
|
| 5006 | 231401-3 | COMPRESSION SPRING 7 | £1.00 |
|
| 5006 | 231633-2 | TORSION SPRING 8 LS1040/ |
£1.00 |
|
| 5007 | 265056-2 | SHOULDER SCREW M5 CC300D/ |
£1.00 |
|
| 5013 | 655030-2 | PLUG UK TYPE 16A-4H/ |
£8.34 |
|
| 5014 | 654091-9 | NON INSULATED TERMINAL GD0801 | £1.00 |
|
| 5016 | 253804-1 | BLUE WASHER 6 CS DST112/ |
£1.00 |
|
| 5020 | A-80999 | T.C.T.SAW BLADE 260X60TX30 | £60.70 |
|
| 5020 | B-04597 | TCT SAW BLADE 260X30X70T | £64.70 |
|
| 5024 | 153896-9 | SUB FENCE R COMPLETE | £0.00 |
Not Available
|
| 5024 | 192648-3 | SUB FENCE (R) SET | £0.00 |
Not Available
|
| 5024 | 194002-7 | SUB FENCE (R) SET | £0.00 |
Not Available
|
| 5025 | 344854-8 | *ADJUSTER PLATE LS1013 | £1.00 |
|
| 5026 | 912107-9 | COUNTERSUNK SCREW M4X8/ |
£1.00 |
|
| 5027 | 421863-5 | CAP LS1214/ |
£2.25 |
|
| 5028 | 345494-5 | STOPPER LS1214/ |
£1.00 |
|
| 5029 | 266050-7 | PT SCREW 4X30 BUC121/ |
£1.00 |
|
| 5030 | 419075-2 | ROD HOLDER LS1214L/ |
£3.05 |
|
| 5031 | 961012-7 | EXT E-RING JIS JE-6 | £1.00 |
|
| 5032 | 345610-9 | GUARD PLATE LS1013 | £1.00 |
|
| 5033 | 421916-0 | GUARD LS1214L/ |
£1.75 |
|
| 5034 | 911114-9 | PAN HD SCREW M4X10/ |
£1.00 |
|
| 5037 | 251887-5 | SCREW M6X10 LS800D/ |
£2.25 |
|
Makita LS1013 Spare Parts
The Makita LS1013 is a 10-inch sliding compound mitre saw with a reputation for being a substantial, workshop-grade machine. If you're still using an LS1013 today, keeping it maintained with individual replacement components can be a much better option than replacing a complete saw that may otherwise have plenty of life left in it.
The parts drawing and list above cover a large number of components for the LS1013, including everything from electrical parts and motor components to the sliding mechanism, base, fence and cutting assembly.
Common LS1013 Repairs
One of the more obvious maintenance items on the LS1013 is the carbon brushes. The machine uses replaceable carbon brushes, and worn brushes can cause poor running, intermittent operation or a complete loss of power. The brush holder caps are also individually available, making this a relatively straightforward area to inspect when an older LS1013 starts playing up.
Electrical faults can also involve the controller, field assembly, armature or motor housing. The LS1013 parts breakdown lists these separately, so depending on the fault, it may be possible to replace the failed component rather than the complete motor assembly.
LS1013 Bearings, Spindle and Cutting Mechanism
A mitre saw that has seen years of use can also develop wear around its moving parts. The LS1013 uses a number of ball bearings, bearing retainers, a spindle and bevel gear, all of which are shown in the parts information for the model. If you're investigating excessive noise, rough operation or play in the cutting mechanism, these components are worth considering as part of the repair.
The saw also contains a substantial sliding and positioning mechanism, with components including the guide rule, turn base, arm holder, bearing box, slide plate and stopper assemblies. Damage or wear to these parts can affect the movement or positioning of the saw and may be repairable without replacing the complete machine.
Find Makita LS1013 Parts
With a model containing such a large number of individual components, the Makita LS1013 parts diagram is particularly useful when carrying out a repair. Locate the component on the drawing above and match its reference number to the parts list to identify the relevant Makita part number.
Whether you're replacing carbon brushes, bearings, a controller, armature, field assembly, spindle, motor component or a part of the sliding mechanism, checking the diagram first can help you establish exactly what you need.
Browse the Makita LS1013 spare parts above to find the components available for repairing and maintaining your saw.
Accessories for Makita LS1013
This model also has 3 accessories available.
Scroll down to view them.
