195022-4 supersedes older part number: 194435-6
CB441 replaces CB432 and CB429

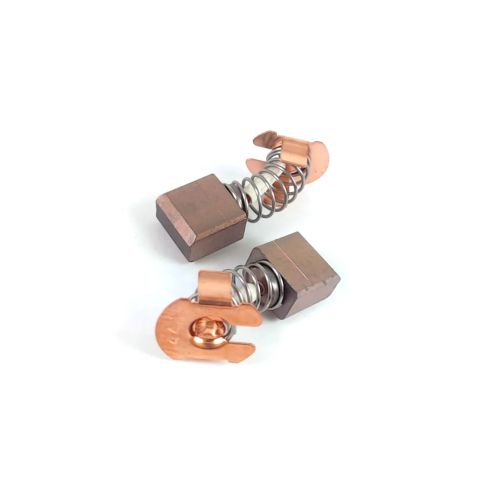

Makita 195022-4 (CB441 CB432 CB429) — Carbon brush set for brushed Makita motors
Restore reliable motor contact and smooth starting/braking with this original Makita carbon brush set (part no. 195022-4 / CB441 CB432 CB429). These are the replacement carbon blocks and hardware used on a range of Makita brushed motors — supplied as a matched set to replace worn or damaged brushes and their spring/cap assemblies.
Key details
- Part: Makita 195022-4 (marked CB441 CB432 CB429).
- What you get: a carbon brush set (pair of Carbon brushes)
- Carbon block nominal dimensions (approx.): width ~6.9–7.0 mm, height ~10.8–11 mm, length ~12.7–13 mm.
- Purpose: restores electrical contact to the armature/commutator, improves motor power, prevents intermittent operation and preserves armature life when installed before severe wear occurs.
Example Makita models this brush set is listed as compatible with the following :
- Cordless/corded rotary hammers and drills: DHR202, DHR241 / BHR202, BHR241.
- Reciprocating/jigsaws and saws: DJR181, DJR186, JR140D / JR180D.
- Impact and wrench series: DTW450, BTW200/BTW450 / DTW450 listed among compatible impacts.
- Other workshop tools cited with this part include various drills, circular saws and planers that use the CB‑441, CB432 or CB429 brush family — check the model list in your tool’s parts breakdown to confirm fit.
Why choose this Makita brush set
- Direct-fit, original Makita part number used in the factory assemblies for the tool families above — designed for correct seating, lead routing and spring tension so brushes wear evenly and protect the armature.
Installation note (brief)
- Replace brushes as a matched pair; inspect the armature/commutator for heavy burning or scoring — severely damaged commutators may require additional service. Brush wear limits vary by tool; install before the carbon is near the lead to avoid intermittent contact.
