518765-5 supersedes older part numbers: 510071-4

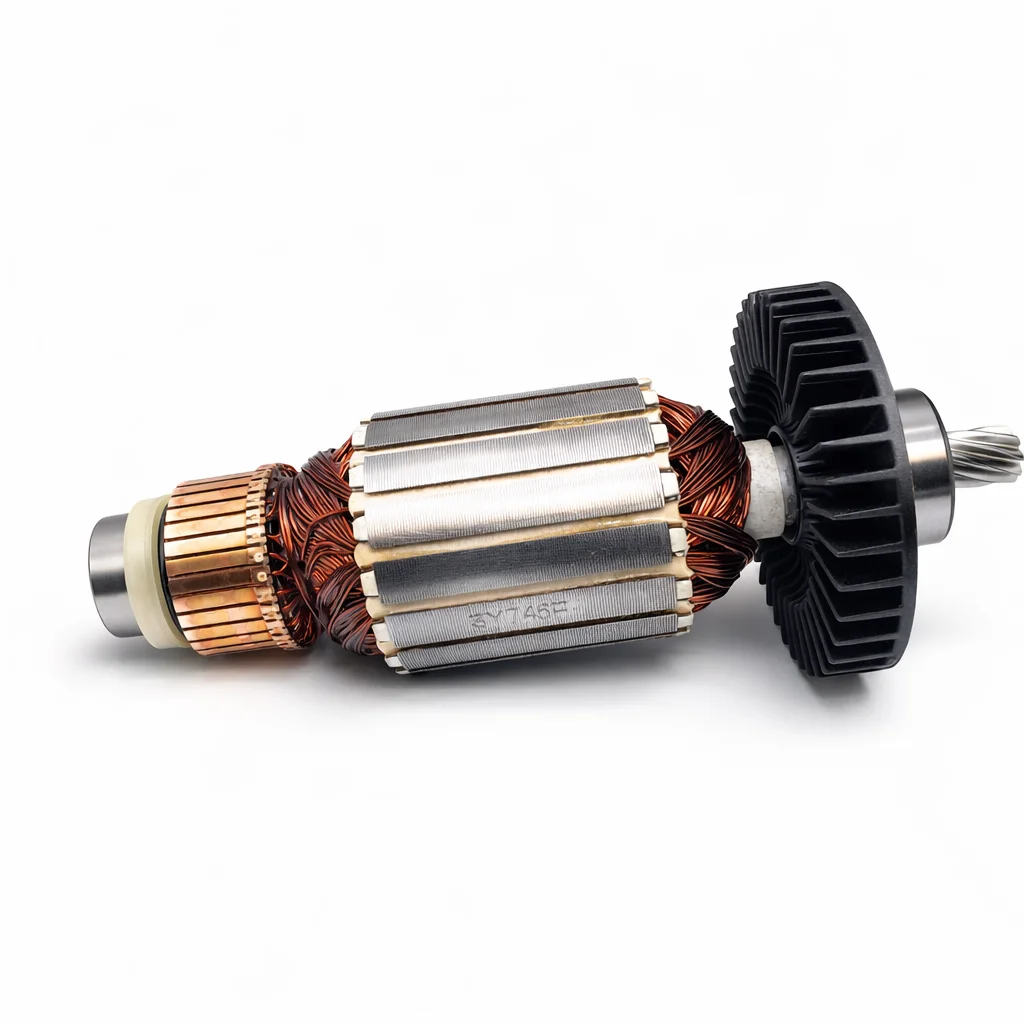

Original Makita armature (rotor) assembly 518765-5 — direct replacement for Makita 2704 and 2704N table saw motors. This complete armature/rotor is supplied assembled with commutator and shaft for 220–240 V motors and is the part specified for the 2704 series.
Key details for fit and installation: overall length ~183 mm, rotor stack diameter ~54 mm, commutator diameter ~37 mm, distance between bearings ~143 mm, shaft / upper bearing diameter ~13 mm, lower bearing spec 6000. The shaft end is a 9‑tooth / 9‑slot type with right‑hand orientation. These dimensions make it a direct mechanical and electrical replacement in the Makita 2704/2704N table saw motor assembly.
If your table saw shows burning, heavy sparking at the commutator, or loss of torque, replacing this original Makita armature restores original motor performance and alignment without modification.
(Part number: 518765-5 — fits Makita 2704, 2704N table saw models.)
