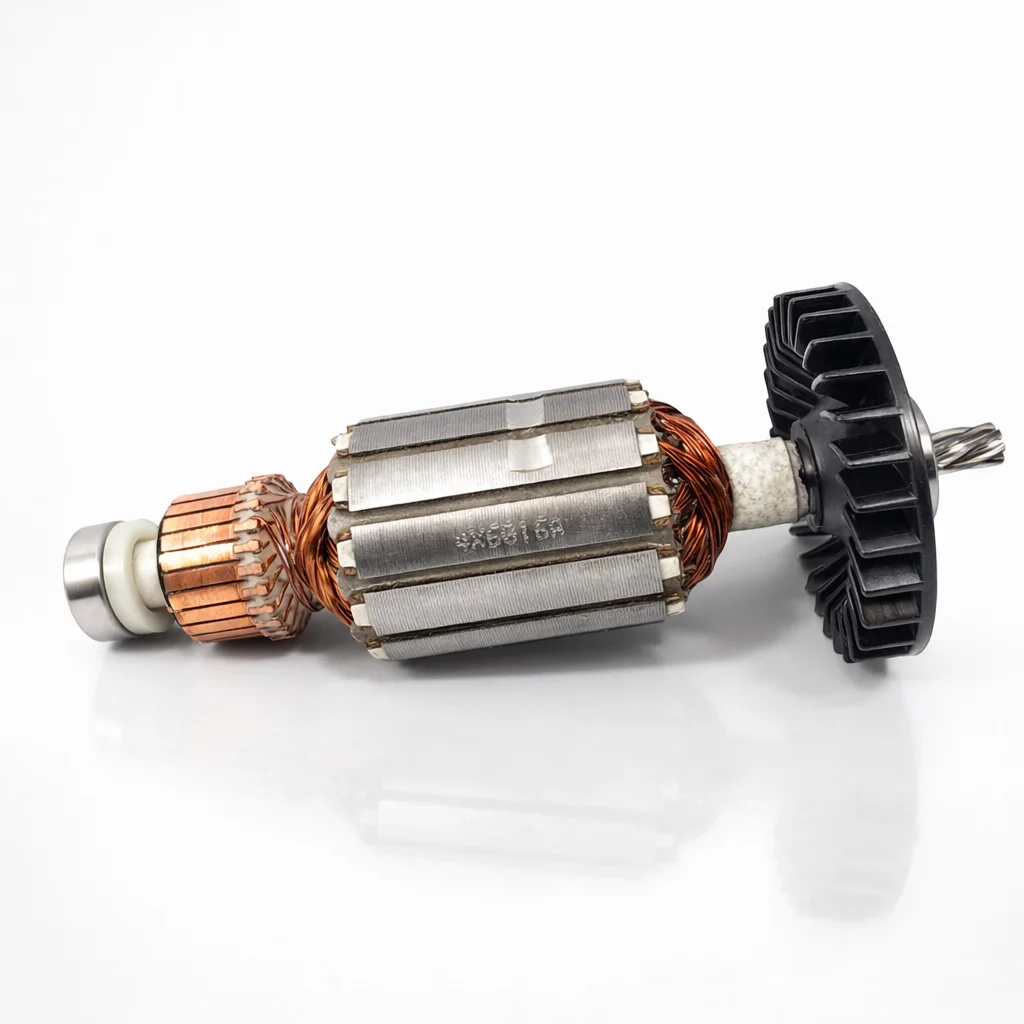

Makita 516016-0 — Armature assembly (original Makita) for 110 V 8406 diamond core drills.
- What it is: Complete armature assembly (part no. 516016-0 ) engineered for the Makita 8406 series.
- Ready to install: The assembly is supplied with the internal components fitted (includes the rotor fan and fitted ball‑bearings / insulation components as shown in the parts breakdown), so you can swap the faulty rotor out and get the motor turning again.
- Electrical / model fit: Specified for the 110 V variant of the Makita 8406 core drill (commonly used on 110 V 133 mm diamond core drills). Use this part where the diagram list part 516016-0 .
- Why choose it: This is the original Makita armature assembly produced to the manufacturer part specification — the same rotating assembly shown in the official parts diagram for the 8406.
Example model(s) it fits (for reference): Makita 8406 (110 V) diamond core drill 110 V 133 mm core‑drill variants listed in Makita Diagram
(If your unit is a different voltage or a different model series, check the parts list on the tool’s service label or parts diagram to confirm 516016-0 is the indicated armature for your exact model.)
