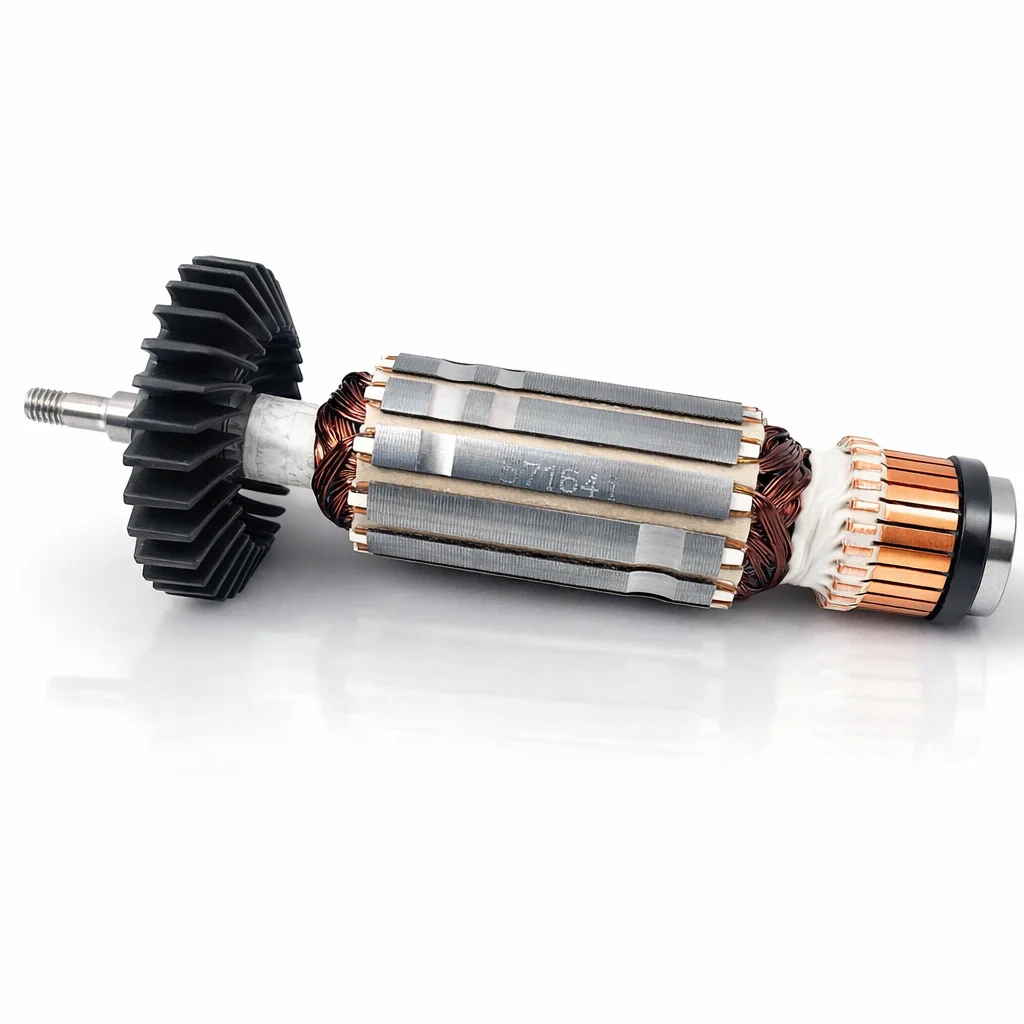

Makita 517646-0 — Armature Assembly (115 V)
A direct-fit, original Makita armature assembly (517646-0) made for Makita GA4530 series angle grinders; it’s listed as the 115 V armature assembly in Makita’s parts breakdown.
This complete armature comes ready-to-install with the commutator, shaft and wound rotor core assembled and balanced to restore smooth spindle rotation and reliable electrical contact — exactly the component that replaces a burnt or shorted rotor in the motor.
Fitment: the part is for models : GA4034 / GA5034 / GA4030 / GA5030 and GA4530 Confirm by matching the part number to your grinder’s parts diagram before installation.
Practical details: specified as the 115 V armature assembly in Makita documentation; packaged dimensions are listed roughly 84 × 189 × 84 mm. This original Makita replacement is a straightforward way to get your grinder back to service when you’re repairing the motor.
If your goal is to source parts for power tools repair, this original Makita armature (517646-0) is the exact part number to match against Makita Angle Grinders GA4034
