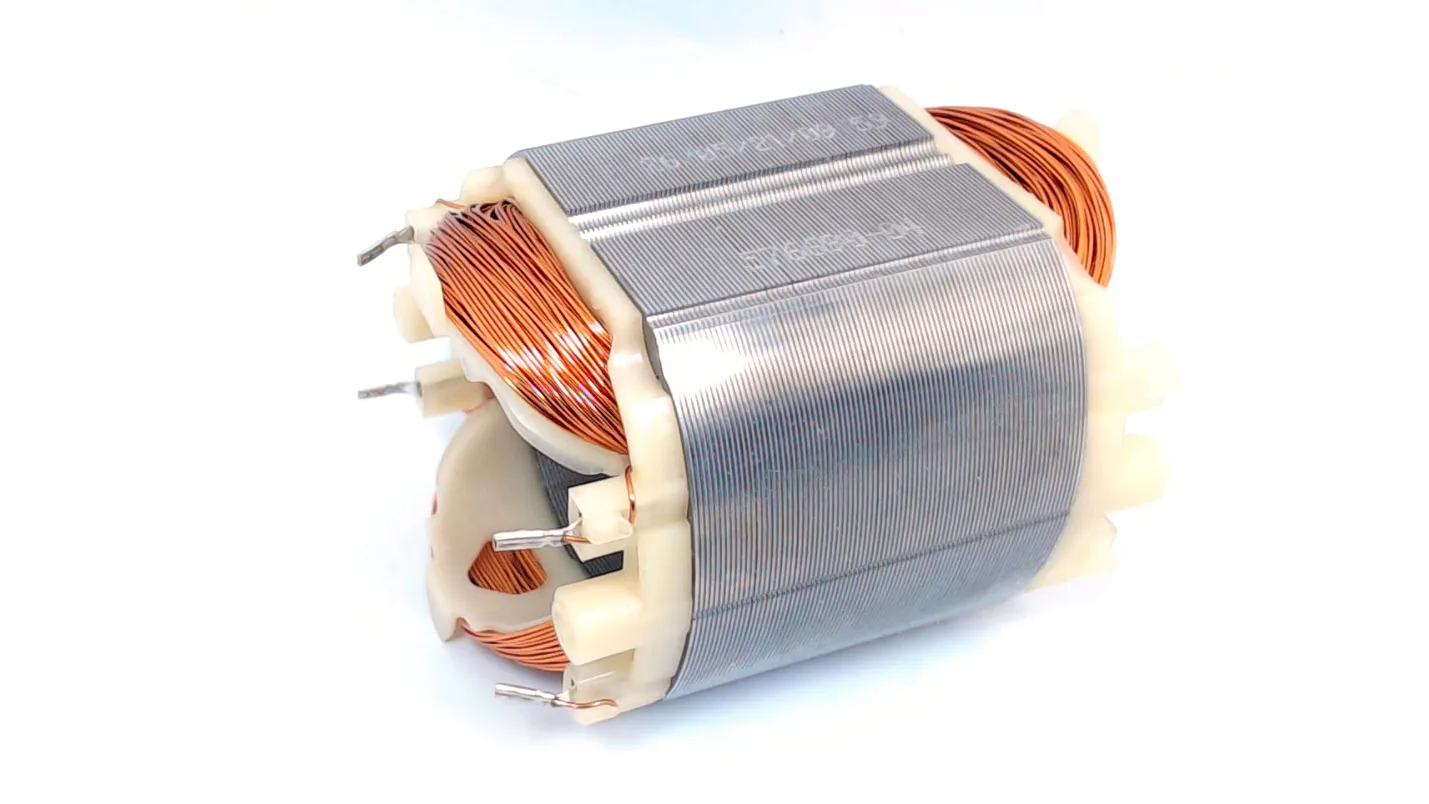

Original DeWalt stator / field coil (part no. 576690-05) — a direct replacement field assembly for compatible DeWalt mains rotary‑hammers and hammer‑drills. This genuine DeWalt field is the electrical stator that surrounds the rotor and provides the magnetic field the motor needs to run; it’s supplied as the service field/stator unit for the D25102K, D25103K
Fits (examples): commonly used in DeWalt models such as D25101K, D25102K, D25103K, D25104K, D25112K/D25113K, D25201K, D25223, D25303K, D25304K, D25313K, D25323/D25324 and several other D25xxx-series rotary hammers — check your model number against the list when ordering.
Key details:
- Part number: 576690-05 (DeWalt / original DeWalt field).
- Intended for mains (mains‑voltage) rotary‑hammer/hammer‑drill models (commonly sold as a 220–230 V field for these tool types).
- Typical stator sizing for this: outer diameter ≈ 59 mm, inner diameter ≈ 36 mm, metal frame (stack) length ≈ 40 mm — match these to your removed stator to confirm fit.
Condition: intended as the original DeWalt replacement field assembly — install in place of the damaged/shorted stator to restore motor operation. Compatible across numerous D25-series DeWalt rotary hammers, but always compare the part number and physical dimensions with the stator you removed before fitting.
