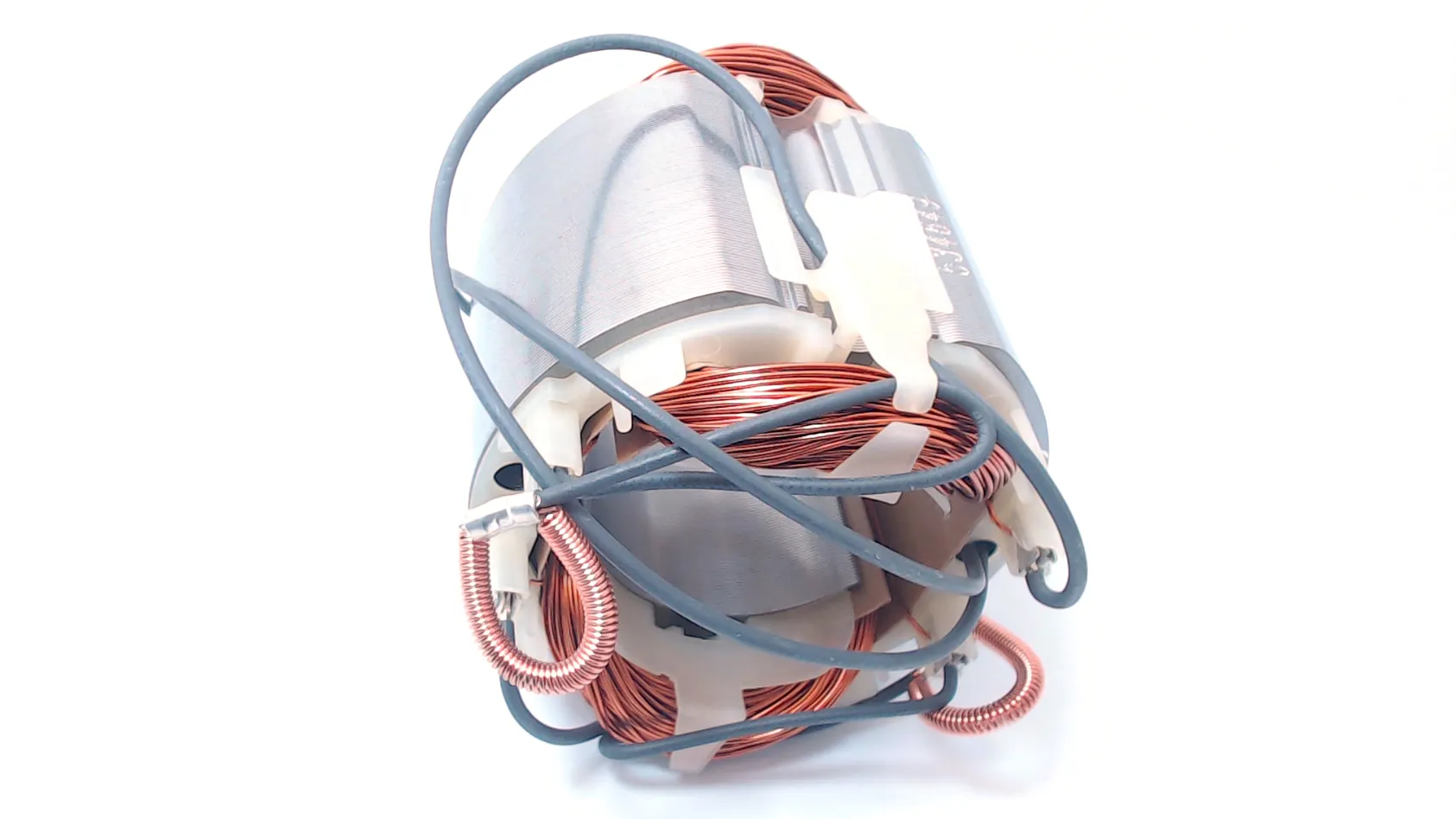

Makita 594649-1 — Field Assembly (stator), 240 V
Keep your Makita circular saw running like new: this is the original Makita field assembly (stator) — part no. 594649-1 — built for the 240 V versions of the HS7601 series. It’s the complete field coil and housing assembly that replaces a burned or damaged stator to restore the motor’s magnetic field and proper torque/rotation.
Key details
- Part: Field assembly / stator (Makita 594649-1).
- Voltage: 240 V field assembly.
- What it does: complete stator (coil + housing) replacement for the motor — restores magnetic field and normal motor operation when the original field is damaged.
- Fitment note: fits Makita HS7601 circular saw models (including regional HS7601J variants) that use a 190 mm blade. Confirm your model number against the tool’s parts list before fitting.
Why this part matters
- Direct, original Makita replacement designed to match the saw’s factory electrical and mechanical specifications, so it drops in without modification when the correct model is confirmed.
Compatibility (examples)
- Makita HS7601 (190 mm circular saw).
- Makita HS7601J (regional variant, 190 mm).
Installation reminder
- This is a motor assembly part — replacement requires basic motor disassembly and reassembly. Match the part number 594649-1 to your HS7601 series parts diagram before installation.
If your saw’s motor field is burnt, shorted, or visibly damaged, the Makita 594649-1 field assembly is the original manufacturer part you’d use to get the motor running again.
