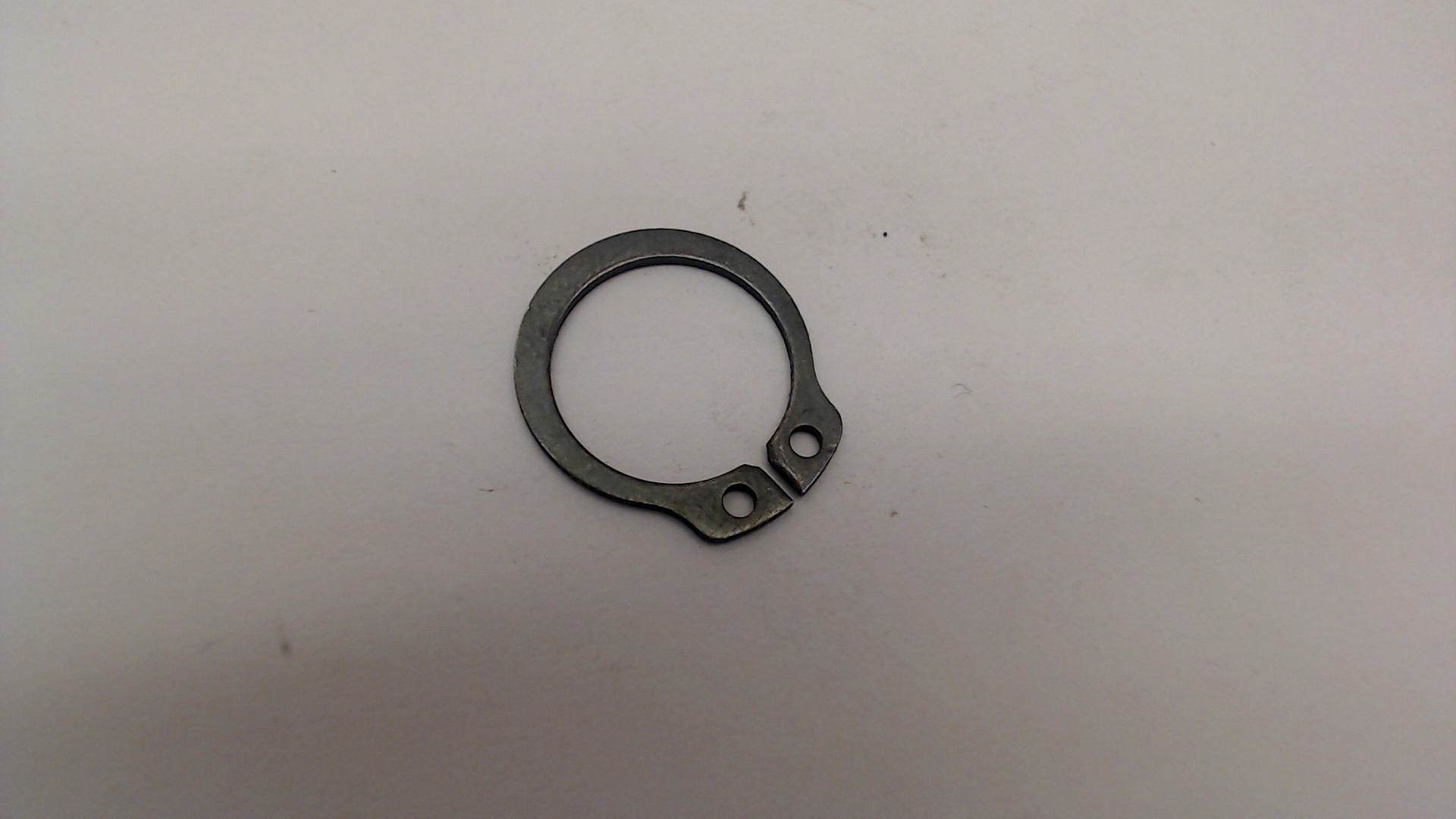

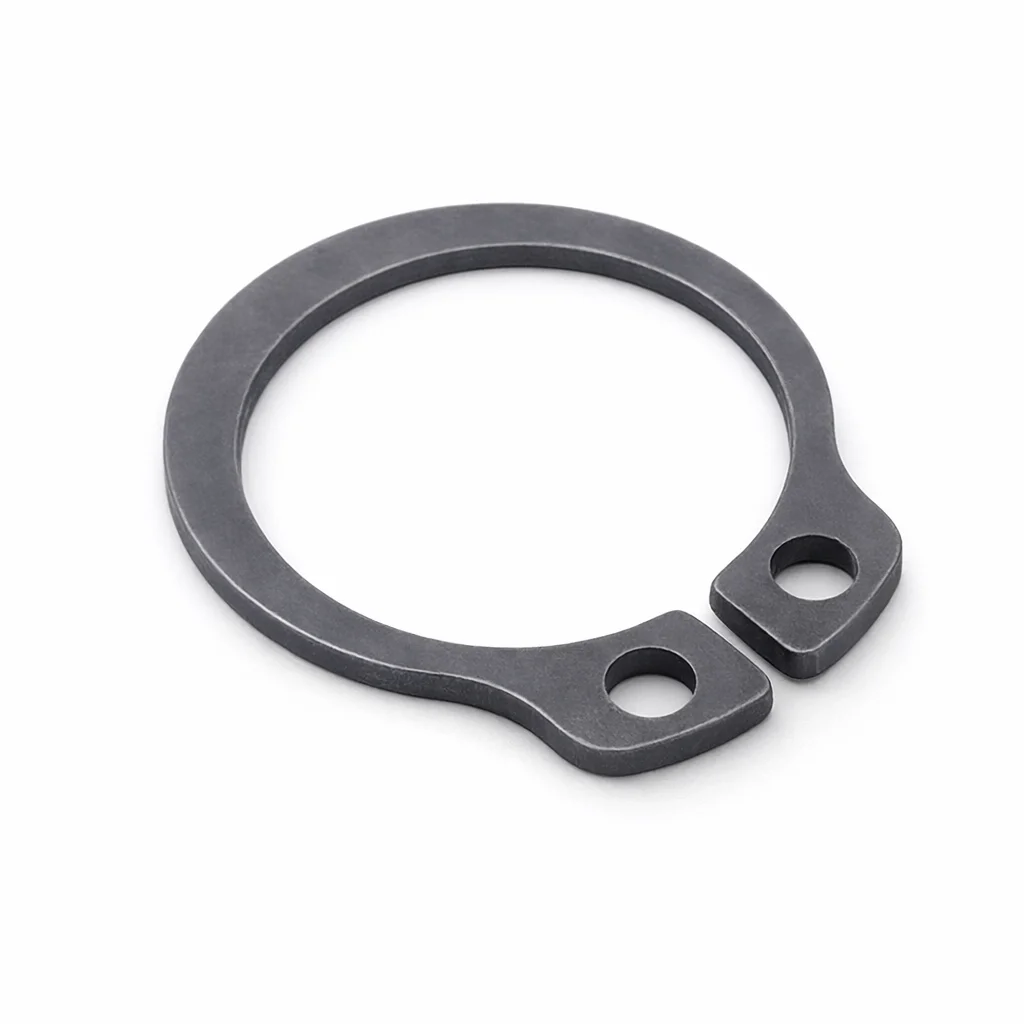

Makita 961055-9 — Retaining ring (external circlip) S‑15. A genuine Makita small steel circlip designed to lock onto a shaft groove and hold bearings, gears or collars in place — a compact, service‑grade part you reach for during a quick repair. Makita spare parts like this are simple but critical for restoring proper shaft retention.
Key details: external (shaft) circlip, S‑15 size — intended for a 15 mm shaft nominal diameter; typical DIN‑471 dimensions for S‑15 clips are about 1.0 mm thickness, groove (set) diameter ≈ 14.3 mm and groove width ≈ 1.1 mm (spring‑steel construction). Use it where a 15 mm shaft groove requires a thin, spring steel retaining ring.
Example models (representative): compatible with a range of Makita tools including : 3706 / 3707F / 4110C / 6310 / GA7010C / HP1510 and DJR186 — check your tool’s parts breakdown to confirm the same part number appears for your model. The item is listed by Makita under part number 961055-9 (Retaining Ring S‑15).
What you’ll get: one original Makita 961055-9 retaining ring S‑15, ready to install into the shaft groove to restore proper mechanical retention.
