0 601 619 741 Spares and Parts for BOSCH ROUTER GOF 2000 CE (ROUTERS)

Ref:	Part Number:	Description	Price
1	2 610 996 079	Motor Housing	£25.04
2	2 610 997 006	Field	£41.83
2	2 610 996 096	Field	£61.32
3	2 610 997 007	Armature	£75.13	NOT AVAILABLE
3	2 610 997 143	Armature	£101.63
3/14	2 916 650 014	Spring Retaining Ring	£1.00
5	2 610 997 009	Power Supply Cord	£19.05
5	2 610 997 016	Power Supply Cord	£21.65
6	3 600 707 503	Grommet	£3.03
7	2 601 035 001	Cable Clip	£1.00
8	2 610 907 977	Nameplate	£2.51
8	2 610 907 982	Nameplate	£3.03
9	2 610 998 878	Warning Plate	£3.03
12	2 610 997 184	Condenser	£6.12
13	1 900 905 276	Deep-groove Ball Bearing	£0.00	NOT AVAILABLE
14	3 600 900 526	Deep-groove Ball Bearing	£25.04
16	1 604 336 008	Brush Holder	£15.05
18	2 610 904 114	Screw	£0.00	Contact Us
20	2 610 998 879	Nameplate	£3.03
21	1 614 652 001	Spiral Spring	£3.03
22	2 610 996 101	Connecting Cable	£2.33
23	2 610 996 102	Bearing Sleeve	£2.78
27	2 610 996 083	Housing Cover	£9.45
28	2 610 996 148	Fan Housing	£63.47
30	2 610 996 106	Handle	£13.34
31	2 610 996 107	Handle	£13.34
35	2 610 996 111	Base Plate	£7.42
36	2 916 011 892	Plain Washer	£1.00
41	3 600 149 500	Spring Retaining Ring	£2.33
42	2 610 931 544	Retaining Snap Ring	£1.00
43	2 610 996 118	Baffle	£5.30
44	2 610 996 119	Lock Bolt	£3.36	NOT AVAILABLE
45	2 610 996 120	Compression Spring	£3.03
47	1 607 233 146	Speed Governor	£28.57	NOT AVAILABLE
47	1 607 233 147	Speed Governor	£35.16
48	2 610 923 615	Bellows	£5.30
49	2 610 997 139	Nut	£7.76
50	2 610 996 125	Locking Bolt	£5.30
53	2 610 996 128	Clamping Spring	£2.05
59	2 610 913 476	Washer	£1.00
60	2 600 590 006	Ratchet Cap	£1.00
61	3 603 231 539	Knob	£1.00
62	2 610 996 135	Locking Lever	£4.78
63	2 610 997 010	Depth-gauge	£7.01
65	2 610 909 058	Depth-gauge	£5.30
66	2 610 996 137	Spring Washer	£2.51
67	1 601 030 022	Tab Washer	£1.00
68	2 610 997 003	Button	£3.36
69	2 610 996 138	Spring Clip	£1.00
70	2 610 996 139	Cover Plate	£2.33
73	2 610 997 012	Indicator Ring	£3.36
74	2 610 991 306	Tapping Screw	£1.00
75	2 610 907 721	Sticker	£2.51
76	2 603 490 021	Torx Oval-head Screw	£1.00
77	2 610 996 142	Screw	£1.00
78	3 603 415 560	Thread-forming Tap. Screw	£1.00
79	2 610 996 143	Screw	£1.00
80	2 610 913 441	Screw	£1.00
81	2 610 915 161	Screw	£2.33	NOT AVAILABLE
84	2 910 951 118	Oval-head Screw	£1.00
85	3 603 410 504	Screw	£2.05
87	2 610 913 573	O-ring	£1.00
88	2 610 997 008	Washer	£1.00
89	2 610 997 030	Terminal	£1.00
90	2 610 997 031	Connecting Cable	£7.01
91	2 610 913 825	Screw	£1.16
92	2 610 909 072	Nut	£1.00
651	2 610 991 370	Guide Sleeve	£25.04
652	2 910 871 122	Countersunk-head Screw	£1.00	NOT AVAILABLE
653	2 610 992 417	Single-head Eng. Wrench	£11.64
654	2 610 907 529	Adjustment Knob	£3.36	NOT AVAILABLE
654/3	2 610 015 629	Ring	£1.00	NOT AVAILABLE
724	2 608 570 107	Collet	£41.72
724	2 608 570 106	Collet	£0.00	Contact Us
724	2 608 570 105	Collet	£0.00	Contact Us
724	2 608 570 104	Collet	£26.10
724	2 608 570 103	Collet	£0.00	Contact Us
724	2 608 570 125	Collet	£0.00	Contact Us
804	2 610 997 157	On-off Switch	£27.69
810	2 610 997 152	Carbon-brush Set	£13.34
834	2 610 996 147	Base Plate	£105.14
840	2 610 910 606	Locking Device	£17.37	NOT AVAILABLE
852	2 610 997 148	Locking Lever	£16.20	NOT AVAILABLE
854	2 610 910 608	Fine-adjusting Device	£25.04
855	2 610 996 149	Conversion Gear	£15.05

Accessories for Bosch 0 601 619 741

Two flute cutter 3mm diameter - C001AX1/4TC

Solid carbide two flute cutter. 3.0mm diameter X 9.5mm cut for softwood, harwood, MDF, plywood and chipboard.

D=3 mm Cut length=3/8 inch Cut length=9.5 mm Shank Diameter=1/4 inch Includes:

Price: £10.50

Two flute cutter 3.2mm diameter - C001BX1/4TC

Solid carbide two flute cutter. 3.2mm diameter X 12.7mm cut for softwood, harwood, MDF, plywood and chipboard.

D=1/8 inch D=3.2 mm Cut length=1/2 inch Cut length=12.7 mm Shank Diameter=1/4 inch Includes:

Price: £13.73

Two flute cutter 6.3mm diameter - C007X1/4TC

Two flute cutter 6.3mm diameter X 19.1mm cut for softwood, harwood, MDF, plywood and chipboard.

D=1/4 inch D=6.3 mm Cut length=3/4 inch Cut length=19.1 mm Shank Diameter=1/4 inch Includes:

Price: £8.82

Two flute cutter 6.3mm diameter - C008X1/4TC

Two flute cutter 6.3mm diameter X 25.4mm cut for softwood, harwood, MDF, plywood and chipboard.

D=1/4 inch D=6.3 mm Cut length=1 inch Cut length=25.4 mm Overall length=68.5 mm Shank Diameter=1/4 inch Includes:

Price: £11.00

Two flute cutter 8.0mm diameter - C012AX1/4TC

Two flute cutter 8.0mm diameter X 25.0mm cut for softwood, harwood, MDF, plywood and chipboard.

D=8 mm Cut length=25 mm Shank Diameter=1/4 inch Includes:

Price: £11.00

Two flute cutter 10mm diameter - C016X1/4TC

Two flute cutter 10mm diameter X 19.1mm cut for softwood, harwood, MDF, plywood and chipboard.

D=25/64 inch D=10 mm Cut length=3/4 inch Cut length=19.1 mm Shank Diameter=1/4 inch Includes:

Price: £13.01

Two flute cutter 12mm diameter - C019AX1/4TC

Microgranular tungsten tipped two flute Cutter 12.0mm diameter X 19.0mm cut for a perfect finish for softwood, harwood, MDF, plywood and chipboard.

D=15/32 inch D=12 mm C=19 mm C=3/4 inch Shank Diameter=1/4 inch Includes:

Price: £16.57

Two flute cutter 12mm diameter - C019X1/4TC

Two flute cutter 12mm diameter X 19.1mm cut for softwood, harwood, MDF, plywood and chipboard.

D=15/32 inch D=12 mm Cut length=3/4 inch Cut length=19.1 mm Shank Diameter=1/4 inch Includes:

Price: £12.69

Two flute cutter 12.7mm diameter - C022X1/4TC

Two flute cutter 12.7mm diameter X 31.8mm cut for softwood, harwood, MDF, plywood and chipboard.

D=1/2 inch D=12.7 mm Cut length=1 1/4 inch Cut length=31.8 mm Shank Diameter=1/4 inch Includes:

Price: £14.90

Two flute cutter 15.0mm diameter - C024AX1/4TC

Two flute cutter 15.0mm diameter X 25mm cut for softwood, harwood, MDF, plywood and chipboard.

D=19/32 inch D=15 mm Cut length=63/64 inch Cut length=25 mm Shank Diameter=1/4 inch Includes:

Price: £14.06

Two flute cutter 20.0mm diameter - C030AX1/4TC

Two flute cutter 20.0mm diameter X 20mm cut for softwood, harwood, MDF, plywood and chipboard.

D=20 mm Cut length=20 mm Shank Diameter=1/4 inch Includes:

Price: £14.90

Dovetail cutter angle=104 degrees 12.7mm diameter - C041AX1/4TC

TCT dovetail cutter, 104 degrees X 12.7mm diameter X 12.7mm cut for timber, plywood, MDF, chipboard and abrasive plastics.

D=1/2 inch D=12.7 mm Cut length=1/2 inch Cut length=12.7 mm Overall length=61 mm A=104 degrees Shank Diameter=1/4 inch Includes:

Price: £14.90

Self guided chamfer angle=45 degrees x 12.7mm Cut - C049X1/4TC

Self guided chamfer cutter for straight and shaped material. Angle 45 degrees X 32.0mm diameter X 12.7mm cut. Does not require a side fence, supplied with two bearings

D=32 mm C=1/2 inch C=12.7 mm B=9.5 mm A=45 degrees Shank Diameter=1/4 inch Includes:

Price: £23.19

Rounding over 6.3mm radius x 12.7mm cut - C076X1/4TC

Self guided rounding over cutter with 6.3mm radius X 25.4mm diameter X 12.7mm cut. Does not require a side fence, supplied with two bearings.

D=1 inch D=25.4 mm C=1/2 inch C=12.7 mm B=9.5 mm B2=12.7 mm R=6.3 mm R=1/4 inch Shank Diameter=1/4 inch Includes:

Price: £27.60

Rounding over 9.5mm radius x 15.9mm cut - C078X1/4TC

Self guided rounding over cutter with 9.5mm radius X 31.7mm diameter X 15.9mm cut.

D=31.7 mm Cut length=5/8 inch Cut length=15.9 mm B=9.5 mm B2=12.7 mm R=9.5 mm Shank Diameter=1/4 inch Includes:

Price: £32.01

Self guided trimmer 12.7mm diameter - C116X1/4TC

Self guided trimmer 12.7mm diameter X 25.4mm cut for trimming plastic or plywood overlays.

D=1/2 inch D=12.7 mm Cut length=1 inch Cut length=25.4 mm B=12.7 mm A=90 degrees Shank Diameter=1/4 inch Includes:

Price: £16.15

Template profile 12.7mm diameter - C121X1/4TC

Bearing guided template profile for rebating and trimming only. 12.7mm diameter X 25.4mm cut.

D=1/2 inch D=12.7 mm Cut length=1 inch Cut length=25.4 mm Shank Diameter=1/4 inch Includes:

Price: £17.09

Biscuit jointer set - C152X1/4TC

Two wing self-guiding TCT cutter ideal for biscuit jointing, 37.2mm diameter X 4.0mm cut. Three ball bearings supplied (12.7mm, 16.0mm and 19.0mm)

D=37.2 mm Cut length=4 mm B=12.7 mm B2=16.0 mm B3=19.0 mm Shank Diameter=1/4 inch Includes:

Price: £33.60

Guided trimmer 6.35mm diameter x 25.4mm - C168X1/4TC

Guided trimmer 6.35mm diameter X 25.4mm cut for trimming pastic or plywood overlays.

D=1/4 inch D=6.35 mm Cut length=1 inch Cut length=25.4 mm B=6.35 mm A=90 degrees Shank Diameter=1/4 inch Includes:

Price: £13.73

Intumescent cutter set 10mm x 24mm - C209X1/4TC

Neat cut intumescent cutter set, 24mm diameter X 10mm cut for grooves on door frames for intumescent strips.

D=24 mm C=10 mm B=16 mm E=4 mm Shank Diameter=1/4 inch Includes:

Price: £26.44

Intumescent cutter set 15mm x 24mm - C220X1/4TC

Neat cut intumescent cutter set, 24mm diameter X 15mm cut for grooves on door frames for intumescent strips.

D=24 mm C=15 mm B=16 mm E=4 mm Shank Diameter=1/4 inch Includes:

Price: £27.71

Two flute cutter 15.9mm diameter - TR19X1/4TC

Two flute cutter for a clean finish. 15.9mm diameter X 19.0mm cut.

D=5/8 inch D=15.9 mm C=19 mm OL=60 mm Shank Diameter=1/4 inch Includes:

Price: £21.51

Two flute cutter 19.1mm diameter - TR20X1/4TC

Two flute cutter for a clean finish. 19.1mm diameter X 25.0mm cut.

D=3/4 inch D=19.1 mm C=25 mm OL=65.5 mm Shank Diameter=1/4 inch Includes:

Price: £21.51

Radius 5mm radius and 18mm diameter - TR21X1/4TC

Radius cutter for edge coves and fluting. 5.0mm radius X 18.0mm cut.

Cut length=18 mm R=5 mm Shank Diameter=1/4 inch Includes:

Price: £20.97

Chamfer V groove cutter angle=45 degrees - TR22X1/4TC

Chamfer and V groove cutter, ideal for fast chamfering to remove edge on timber, or creating a decorative edge. 45 degrees X 12.7mm diameter.

D=1/2 inch D=12.7 mm Overall length=53 mm A=45 degrees Shank Diameter=1/4 inch Includes:

Price: £17.63

Guided trimmer 6.35mm x 12.7 - TR23X1/4TC

Bearing guided trimmer, for trimming and bevelling timber, lipping and plastic laminate edges. 6.35mm diameter X 12.7mm cut

D=1/4 inch D=6.35 mm Cut length=1/2 inch Cut length=12.7 mm Shank Diameter=1/4 inch Includes:

Price: £15.95

Guided trimmer 6.3mm diameter x 25.4 - TR24X1/4TC

Bearing guided trimmer, for trimming and bevelling timber, lipping and plastic laminate edges. 6.35mm diameter X 25.4mm cut

D=1/4 inch D=6.35 mm Cut length=1 inch Cut length=25.4 mm Overall length=74.2 mm Shank Diameter=1/4 inch Includes:

Price: £16.57

Guided trimmer 9.5mm diameter x 12.7 - TR25X1/4TC

Bearing guided trimmer, for trimming and bevelling timber, lipping and plastic laminate edges. 9.5mm diameter X 12.7mm cut

D=3/8 inch D=9.5 mm Cut length=1/2 inch Cut length=12.7 mm Overall length=63 mm Shank Diameter=1/4 inch Includes:

Price: £19.31

Guided trimmer 12.7mm diameter x 25.4 - TR26X1/4TC

Bearing guided trimmer, for trimming and bevelling timber, lipping and plastic laminate edges. 12.7mm diameter X 25.4mm cut

D=1/2 inch D=12.7 mm Cut length=1 inch Cut length=25.4 mm Overall length=76.5 mm Shank Diameter=1/4 inch Includes:

Price: £21.51

Guided trimmer triple fluted 12.7X25.4 - TR27X1/4TC

Triple flutted bearing guided trimmer, for trimming and bevelling timber, lipping and plastic laminate edges. 12.7mm diameter X 25.4mm cut

D=1/2 inch D=12.7 mm Cut length=1 inch Cut length=25.4 mm Shank Diameter=1/4 inch Includes:

Price: £26.44

Guided trimmer 12.7mm x50mm - TR28X1/2TC

Bearing guided trimmer, for trimming and bevelling timber, lipping and plastic laminate edges. 12.7mm diameter X 50.0mm cut

D=1/2 inch D=12.7 mm Cut length=50 mm Shank Diameter=1/4 inch Includes:

Price: £38.02

Guided profiler - TR29X1/4TC

Guided profiler for trimming and profiling timber and man made board. 12.7mm diameter X 25.4mm cut.

D=1/2 inch D=12.7 mm Cut length=1 inch Cut length=25.4 mm Overall length=70.8 mm Shank Diameter=1/4 inch Includes:

Price: £23.19

Guided profiler - TR30X1/2TC

Guided profiler for trimming and profiling timber and man made board. 19.1mm diameter X 50.0mm cut.

D=3/4 inch D=19.1 mm Cut length=50 mm Overall length=95 mm Shank Diameter=1/2 inch Includes:

Price: £43.05

Guided ovolo round over cutter 6.35mm radius - TR31X1/4TC

Bearing guided ovolo cutter, produces a smooth round over profile. 25.4mm diameter, incudes 12.7mm bearing.

D=1 inch D=25.4 mm B=9.5 mm R=6.3 mm Shank Diameter=1/4 inch Includes:

Price: £36.95

Guided ovolo over 9.5mm radius - TR32X1/4TC

Bearing guided ovolo cutter, produces a smooth round over profile. 31.7mm diameter, incudes 12.7mm bearing.

D=31.7 mm B=9.5 mm R=9.5 mm Shank Diameter=1/4 inch Includes:

Price: £39.17

Guided chamfer angle=45 degrees x 31.8mm - TR33X1/4TC

Bearing guided chamfer and V groove cutter, ideal for fast chamfering to remove edge on timber, or creating a decorative edge. 45 degrees X 31.8mm diameter.

D=1 1/4 inches D=31.8 mm Overall length=62 mm B=9.5 mm A=45 degrees Shank Diameter=1/4 inch Includes:

Price: £28.36

Biscuit jointer set - TR35X1/4TC

Bearing guided biscuit jointer set. Enables biscuit jointing with timber, man made fibre and partical board. 37.2mm diameter X 4.0mm cut

D=29/64 inch D=37.2 mm Cut length=4 mm B=12.7 mm Shank Diameter=1/4 inch Includes:

Price: £42.41

Two flute cutter 15mm diameter - TR40DX1/4TC

Two flute cutter for a clean finish, TCT centre tip for drilling abrasive material. 15.0mm diameter X 25.0mm cut.

D=15 mm C=25 mm Shank Diameter=1/4 inch Includes:

Price: £22.56

Router Cutter - C121BX1/4TC

Bearing guided template profile for rebating and trimming only. 12.7mm diameter X 9.5mm cut.

Price: £17.30

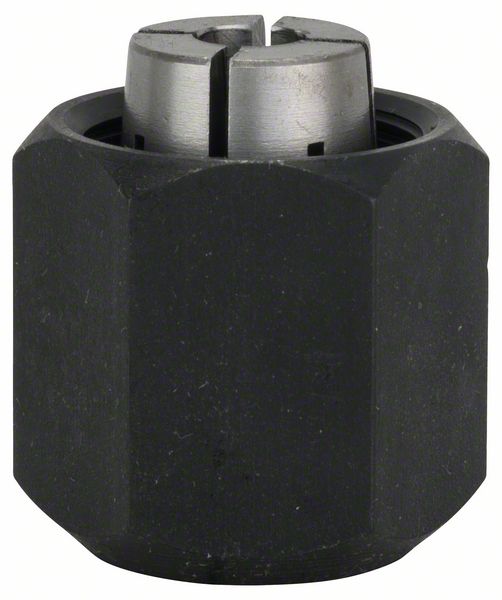

1/4" Collet and Nut Set - 2608570104

1/4" (6.35mm) collet appropriate for use in Bosch routers: GOF MF 1400 CE, GMF 1600 CE, GOF 1200, GOF 1200 A, GOF 1300 ACE, GOF 1300 CE, GOF 1600 CE, GOF 2000 CE professional.

Price: £26.10

13mm Guide Bush / Template Guide (Quick Fastening Lock) - 2609200138

13mm guide bush/template guide suitable for use with Bosch DIY and professional routers: GKF 600; GMF 1400 CE; GMF 1600 CE; GOF 900; GOF 900 ACE; GOF 900 CE; GOF 1600 CE; GOF 2000 CE Professional; POF 800; POF 1100 AE; POF 1200 AE; POF 1300 ACE; POF 1400 ACE.

Price: £13.07

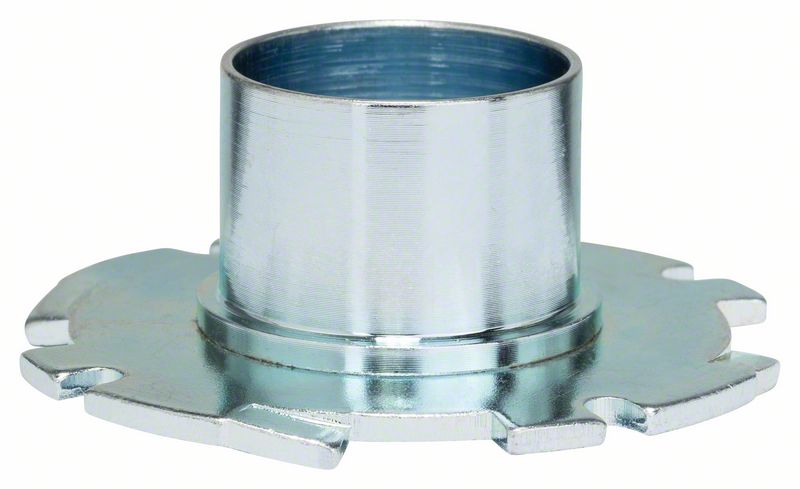

16mm Guide Bush / Template Guide (Quick Fastening Lock) - 2608000471

16mm guide bush/template guide suitable for use with Bosch DIY and professional routers: GKF 600; GMF 1400 CE; GMF 1600 CE; GOF 900; GOF 900 ACE; GOF 900 CE; GOF 1600 CE; GOF 2000 CE Professional; POF 800; POF 1100 AE; POF 1200 AE; POF 1300 ACE; POF 1400 ACE.

Price: £18.30

24mm Guide Bush / Template Guide (Quick Fastening Lock) - 2609200140

24mm guide bush/template guide suitable for use with Bosch DIY and professional routers: GKF 600; GMF 1400 CE; GMF 1600 CE; GOF 900; GOF 900 ACE; GOF 900 CE; GOF 1600 CE; GOF 2000 CE Professional; POF 800; POF 1100 AE; POF 1200 AE; POF 1300 ACE; POF 1400 ACE.

Price: £15.46

27mm Guide Bush / Template Guide (Quick Fastening Lock) - 2609200141

27mm guide bush/template guide suitable for use with Bosch DIY and professional routers: GKF 600; GMF 1400 CE; GMF 1600 CE; GOF 900; GOF 900 ACE; GOF 900 CE; GOF 1600 CE; GOF 2000 CE Professional; POF 800; POF 1100 AE; POF 1200 AE; POF 1300 ACE; POF 1400 ACE.

Price: £15.46

30mm Guide Bush / Template Guide (Quick Fastening Lock) - 2609200142

30mm guide bush/template guide suitable for use with Bosch DIY and professional routers: GKF 600; GMF 1400 CE; GMF 1600 CE; GOF 900; GOF 900 ACE; GOF 900 CE; GOF 1600 CE; GOF 2000 CE Professional; POF 800; POF 1100 AE; POF 1200 AE; POF 1300 ACE; POF 1400 ACE.

Price: £13.46

Buy Replacement Parts and Accessories for the Bosch 0 601 619 741

45 Compatible Accessories Available!

Accessories for Bosch 0 601 619 741

Contact Info

Secure Shopping

Our Service

Help And Advice

Your Account

Recently Viewed
